13.5t Excavator with tilt hitch

Description

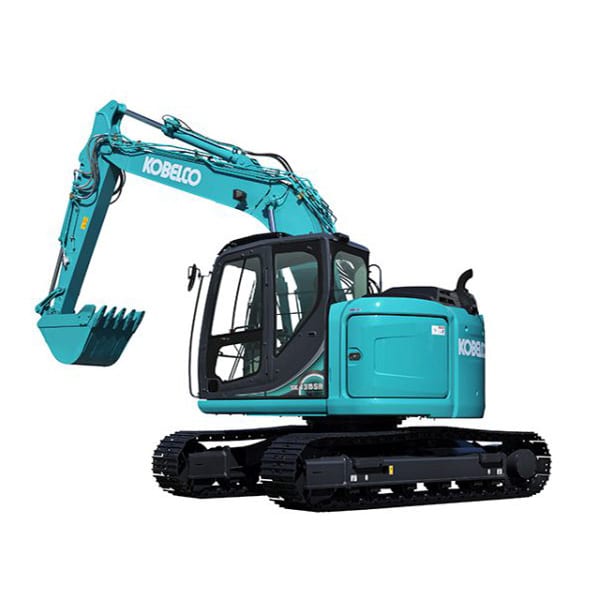

The all new Kobelco S135SR-2 Excavator comes equipped with a Hydraulic tilt hitch, , ER, GP, 450, 1500 Mud and a RIPPER

Ultimate low noise and dust reduction with Kobelco’s proprietary iNDr system.
Meets Tier 3 emissions requirements, with no DPF.
The compact design of this machine allows operators to perform continuous 180 degree dig, swing and load operations within a working space of just 3.5m.

Hire Time	Price
4 Hour Hire
1 Day Hire	$495.00
2 Day Hire	$990.00
3 Day Hire	$1,485.00
4 Day Hire	$1,980.00
5 Day Hire	$1,980.00
6 Day Hire	$2,475.00
7 Day Hire	$2,970.00
Weekly Hire	$2,970.00
Monthly Hire	POA
Weekend	POA

SPECIFICATIONS

DIMENSIONS

Overall Length, Width & Height

7.4 x 2.49 x 2.91 m** (**500 mm shoe)

OPERATING WEIGHT

13,800 kg

ENGINE

Rated Power Output

74 kW / 2,000 min (ISO 14396)

HYDRAULIC SYSTEM

Max. Discharge Flow

2 x 130 (2 variable displacement pumps) + 20 (1 gear pump)

WORKING RANGES

Max. Digging Depth

5.52 m

Max. Digging Reach

8.34 m

Max. Dumping Clearance

6.74 m

DIGGING FORCE

Bucket Digging Force

90.1 kN (ISO 6015)

Arm Crowding Force

64.4 kN (ISO 6015)

REFILLING CAPACITIES

Fuel Tank

200 L

Hydraulic Oil Tank (System)

98.5 (140) L
