12ft Tracked man lift – Haulotte STAR 6 Crawler
Online Enquiry Form
12ft Tracked man lift – Haulotte STAR 6 Crawler
Description

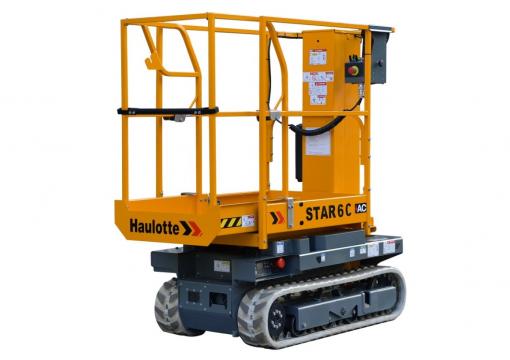

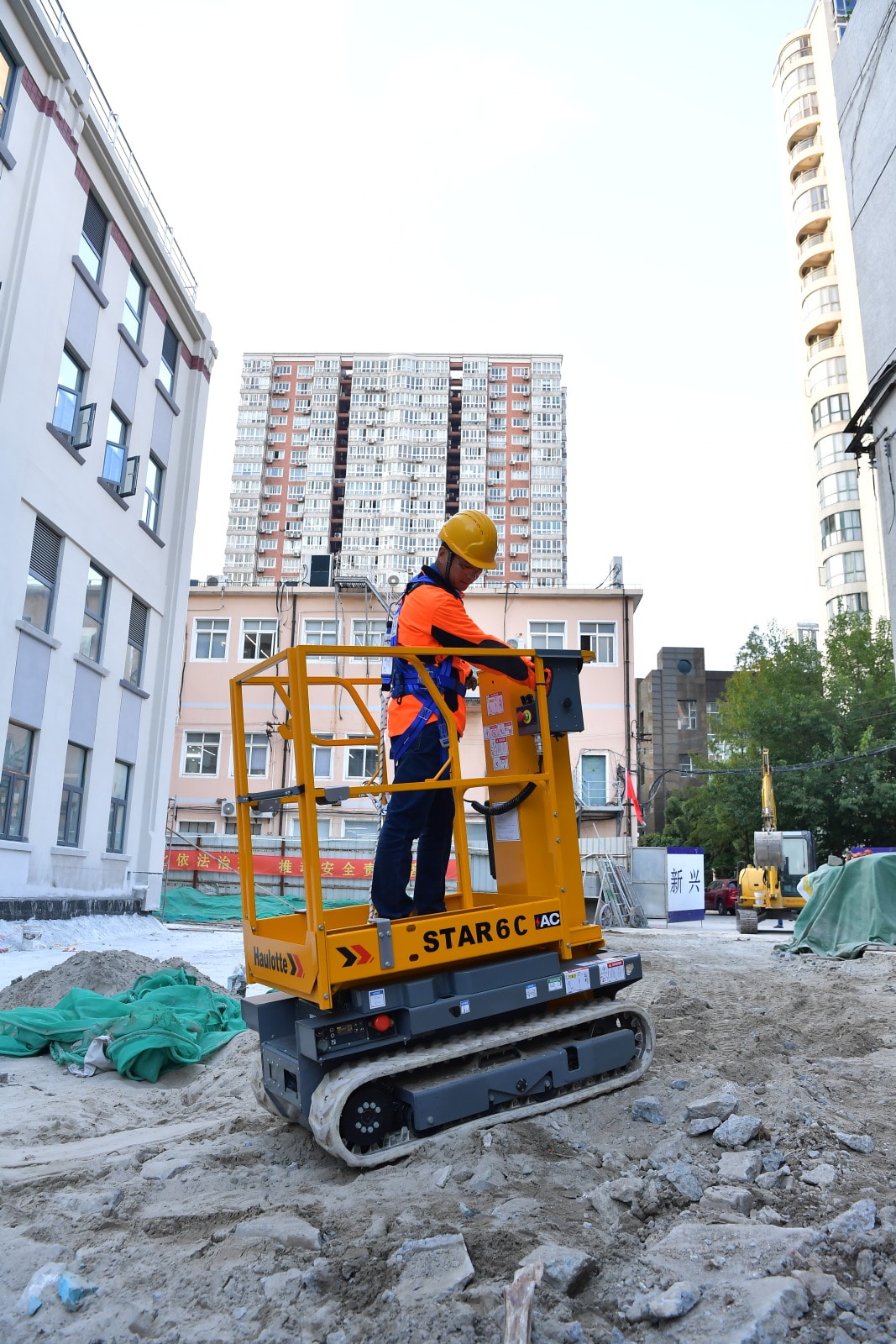

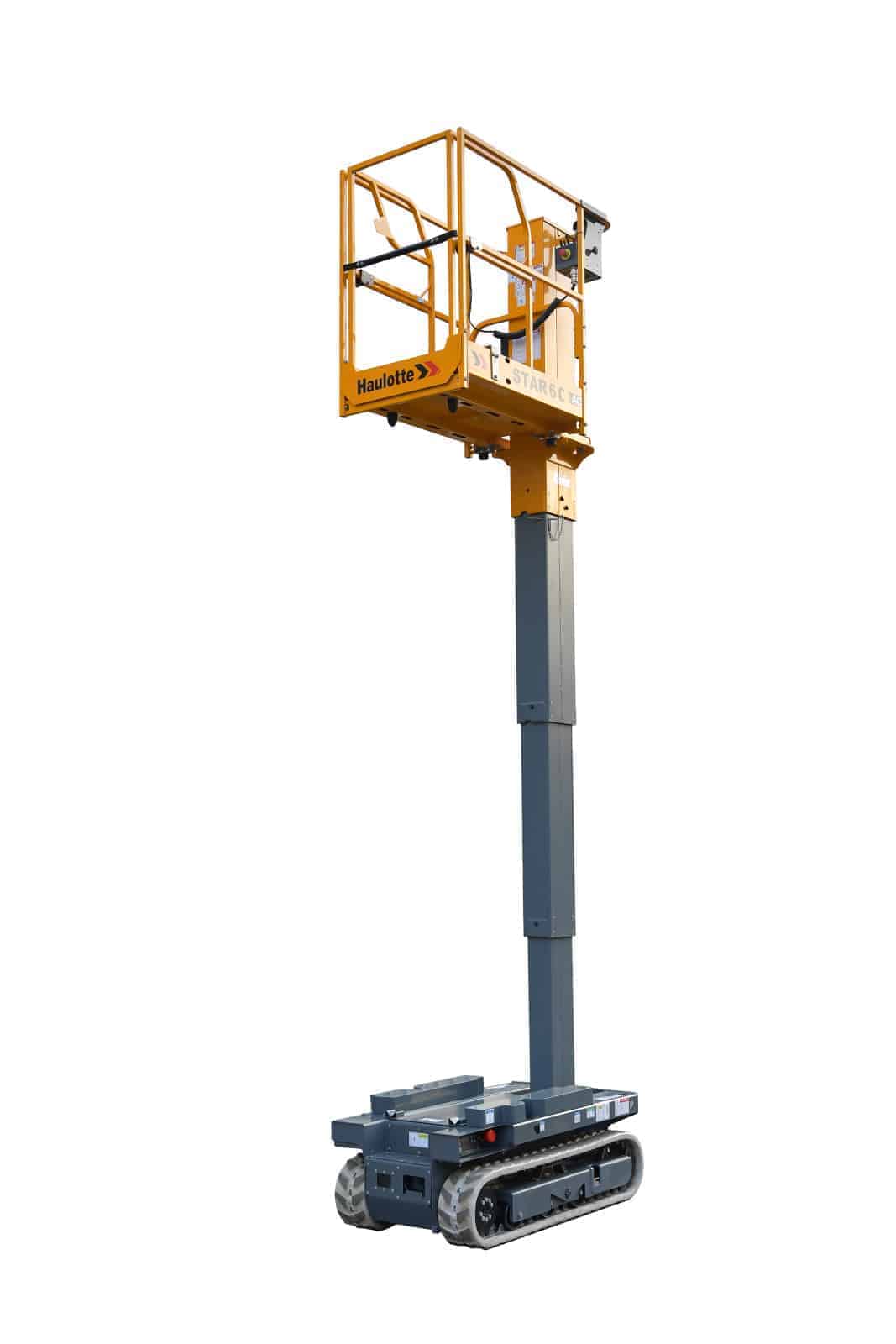

The Haulotte STAR 6 Crawler – 12ft battery powered, narrow version self-propelled elevated work platform.
Best used when the scissor lift needs to be driven off a concrete surface (Across Grass, dirt, gravel etc). Scissor lift still needs to be on a flat surface to extend in height.
Plant trailer available for an additional $55.00
| Working height | 5.8 m |
| Platform height | 3.8 m |
| Hire Time | Price |
|---|---|
| 4 Hour Hire | N/A |
| 1 Day Hire | $192.50 |
| 2 Day Hire | $385.00 |
| 3 Day Hire | $434.50 |
| 4 Day Hire | $473.00 |
| 5 Day Hire | $473.00 |
| 6 Day Hire | $473.00 |
| 7 Day Hire | $473.00 |
| Weekly Hire | $473.00 |
| Monthly Hire | $1,892.00 |
| Weekend | $192.50 |
SPECIFICATIONS
| Working height | 5.8 m |
| Platform height | 3.8 m |
| Horizontal outreach | 0.4 m extension |
| Lift capacity – inside | 200 kg (2 pers.) |
| Platform size | 0.74 m x 1.0 m |
| Length | 1.44 m |
| Width | 0.76 m |
| Height – stowed | 1.72 m |
| Ground clearance | 6 cm |
| Drive speed proportional | 0.8 – 2.2 km/h |
| Turning radius – outside | 1.25 m |
| Power source | 2 x 12 V – 115 Ah (C5) |
| Weight | 1175 kg |
| Tilt alarm | 1.5° / 3° |
| Gradeability | 25 % |
| Max driveable platf. height | 0.7 m |
| Hydraulic system capacity | 5 l |
| Lift capacity – outside | 200 kg (1 pers.) |
| Rubber tracks – non marking | 180 x 72 x 43 |
| Platform size with extension | 0.74 m x 1.44 m |
