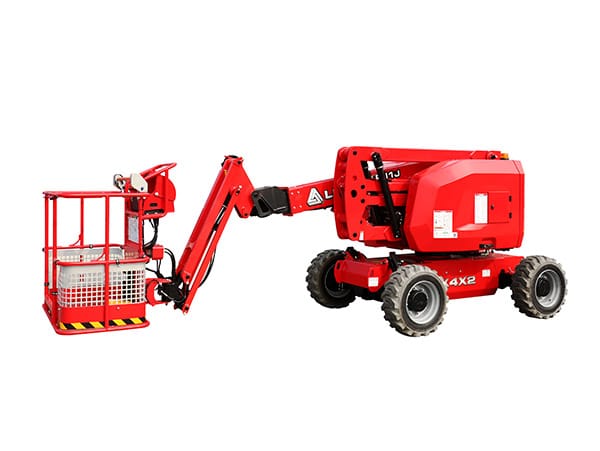

2024 LGMG (AR11J) 11m Articulating Diesel Boom Lift
2024 LGMG (AR11J) 11m Articulating Diesel Boom Lift
Description
LGMG AR Series articulating boom lifts are purpose built for outdoor construction and industrial applications. Simple and reliable design with industrial features make this machine easy to operate. A standard jib offers the ability to reach even the most hard to reach places.
This machine needs to be transported via Tilt tray. Contact us for a delivery Quote.
| Hire Time | Price |
|---|---|
| 4 Hour Hire | N/A |
| 1 Day Hire | $264.00 |
| 2 Day Hire | $528.00 |
| 3 Day Hire | $798.00 |
| 4 Day Hire | $798.00 |
| 5 Day Hire | $798.00 |
| 6 Day Hire | $798.00 |
| 7 Day Hire | $798.00 |
| Weekly Hire | $798.00 |
| Monthly Hire | POA |
| Weekend | $264.00 |
| MODELS | AR11J | AR35J |
| Measurements | Metric | Imperial |
| Work Height Max. | 12.75m | 41’10” |
| Platform Height Max. | 10.75m | 35’3” |
| Horizontal Outreach | 6.78m | 22’3” |
| Up and Over Height | 5.32m | 17’5” |
| Platform Length | 1.42m | 4’8” |
| Platform Width | 0.76m | 2’6” |
| Stowed Length | 5.77m | 18’11” |
| Length-Transport (jib tucked) | 4.46m | 14’8” |
| Overall Width | 1.85m | 6’1” |
| Stowed Height | 2.06m | 6’9” |
| Height-Transport | 2.29m | 7’6” |
| Wheelbase | 1.88m | 6’2” |
| Ground Clearance | 0.19m | 7′ |
| PRODUCTIVITY | ||
| Max. Platform Occupancy | 2 | |
| Platform Capacity | 270kg | 595 lbs |
| Turntable Rotation | 355° | |
| Drive Speed-Stowed | 5km/h | 3.1mph |
| Drive Speed-Raised | 0.8km/h | 0.5mph |
| Gradeability | 45% | |
| Max. Wind Speed | 12.5m/s | 28mph |
| Turning Radius-Inside | 2.6m | 8’6” |
| Turning Radius-Outside | 4.7m | 15’5” |
| Max.Slope | 3°/4.5° | |
| Tires Type | Foam-filled non-marking | |
| Tires Models | 10-16.5 | |
| Ground Pressure, Tyres | 289 kPa | 41.9 psi |
| POWER | ||
| Power Source | Kubota D1105 18.2kW/24.4hp | |
| Fuel Tank Capacity | 45L | 11.9gal |
| HYDRAULIC SYSTEM | ||
| Hydraulic Oil Volume | 58L | 15.3gal |
| WEIGHT | ||
| Machine Weight | 5,400kg | 11,905 lbs |
270kg large platform capacity design maximises productivity.
l Motion squawker, dual pole battery and starter iso-lators as standard.
l Powerful axle-integrated four-wheel drive system.
l Full-time floating axle significantly improves rough terrain capability and ground clearance.
l Advanced proportional electronic control system for easy diagnostics as well as accurate positioning and smooth operation.
